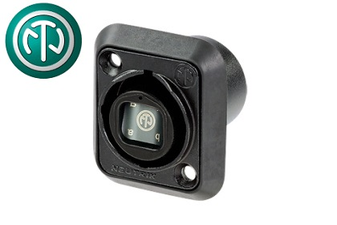

NO4FDW-A - Neutrik opticalCON QUAD Chassis Connector

Description

NO4FDW-A - Neutrik opticalCON QUAD Chassis Connector

Chassis connector, black chromium plating, waterproof acc. to IP65, front panel mount.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Coloured sealings are included to identify the fibre mode.

NO4FDW-A - Neutrik opticalCON QUAD Chassis Connector Drawing

• Rugged 4-channel Point-to-Point multichannel routing solution
• Laser protected metal shutter seals dust proof with two-component rubber gasket
• Water resistant according to IP65 (mated), rubber sealing gasket
• Accommodates standard LC connectors on the rear for cost effective and simple installations
• Colour coding to identify fibre mode:
  Multi mode – black
  Single Mode PC – blue
  Single Mode APC – green
